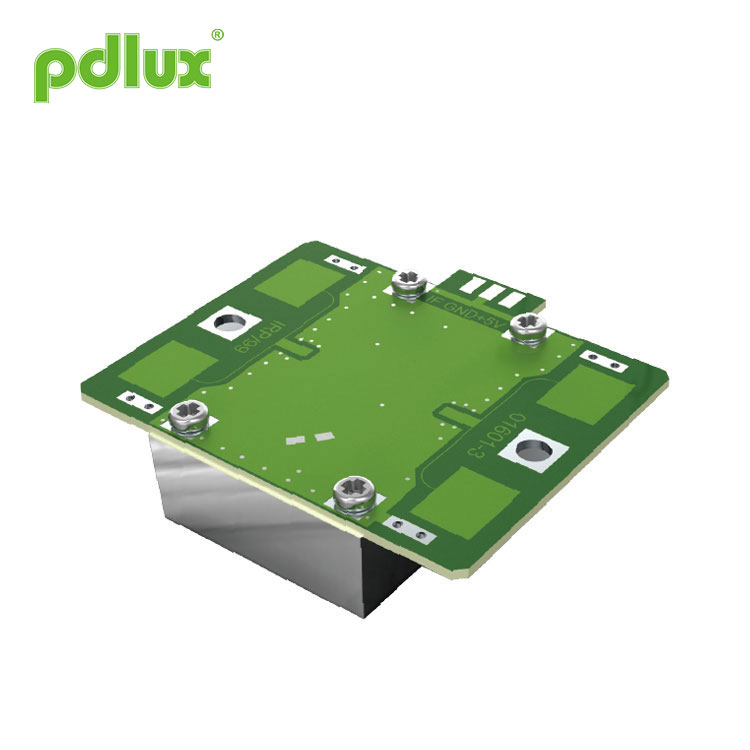

Modul Sensor Gelombang Mikro 10.525GHz PDLUX PD-V9 Security
Modul Sensor Gelombang Mikro PDLUX PD-V9 Security 10.525GHz adalah modul transceiver X-Band Bi-Static Doppler. Ia adalah Resonator Oscillator (CRO) terbina dalam. Modul ini, V9 mengadopsi Antena Plane rata, sesuai untuk pemasangan di dinding. Modul Sensor Gelombang Mikro Keselamatan 10.525GHz dapat meningkatkan kemampuan penerimaan isyarat depannya dan mengurangkan kawasan buta sayapnya. Kinerjanya lebih baik daripada sensor di pasaran.
Model:PDLUX PD-V9
Hantar Pertanyaan
Modul Sensor Gelombang Mikro 10.525GHz PDLUX PD-V9 Security
Modul Sensor Gelombang Mikro 10.525GHz PDLUX PD-V9 Security is a X-Band Bi-Static Doppler transceiver module. It’s built-in Resonator Oscillator (CRO).This module,V9 adopts flat Plane Antenna, suitable for wall mounting. Security 10.525GHz Microwave Sensor Module can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
Modul Sensor Gelombang Mikro 10.525GHz PDLUX PD-V9 Security is ideally suitable for occupancy sensor in automatic lighting switches. Security 10.525GHz Microwave Sensor Module can also be used for ceiling mount intruder detectors.
|
Application of Modul Sensor Gelombang Mikro 10.525GHz PDLUX PD-V9 Security â— Suis pintar â— Suis yang digantung di dinding â— Penceroboh mengesan Ciri dan kelebihan
â— Output kuasa tanpa wayar rendah |
Menurut EN 300440-V2.1.1ã € 62479-2010, arahan RED-2014/53 / eu
Menurut FCC Bahagian 15.249 |
|
Corak Rasuk Antena
|
Size of Modul Sensor Gelombang Mikro 10.525GHz PDLUX PD-V9 Security
|
| Parameter | Catatan | Min | Jenis | Maks | Unit | ||||||
| Penetapan Kekerapan | 1 | 10.520 | 10.525 | 10.530 | GHz | ||||||
| Kuasa Sinaran (EIRP) | 1 | 2.0 | 2.5 | 3.0 | mW | ||||||
| Menetap Masa |
|
5 | 10 | 20 | μSec | ||||||
| Kekuatan Isyarat yang Diterima | 2 | 150 | 200 | 250 | μVp-p | ||||||
| Bising | 3 | 4 | 4.5 | 5 | mVrms | ||||||
| Voltan bekalan |
|
4.75 | 5.00 | 5.25 | V (sumber daya impuls) | ||||||
| Penggunaan terkini |
|
10 | 12 | 14 | mA | ||||||
| Kekerapan Pengulangan Nadi | 4 | 1.8 | 2.0 | 3.0 | KHz | ||||||
| Lebar nadi | 4 | 10 | 20 | 30 | μSec | ||||||
| Suhu Operasi |
|
-15 | 22 | 55 | ℃ | ||||||
| Berat |
|
7.5 | 8 | 8.5 | g | ||||||
Catatan1: Pelepasan terpancar dirancang untuk memenuhi peraturan FCC.
Note2:The Kekuatan Isyarat yang Diterima(RSS) is measured at the total 1 Ways path loss of 70dB.
Catatan3: Tegangan kebisingan diukur dari 10Hz hingga 100Hz di port Output, di dalam ruang Anechoic.
Catatan4: Operasi nadi
